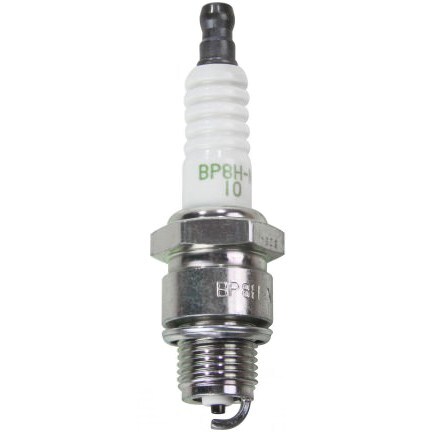

( BP8H-N-10 ) NGK Spark Plug

  • ( BP8H-N-10 ) NGK Spark Plug NGK-BP8H-N-10 BP8H-N-10

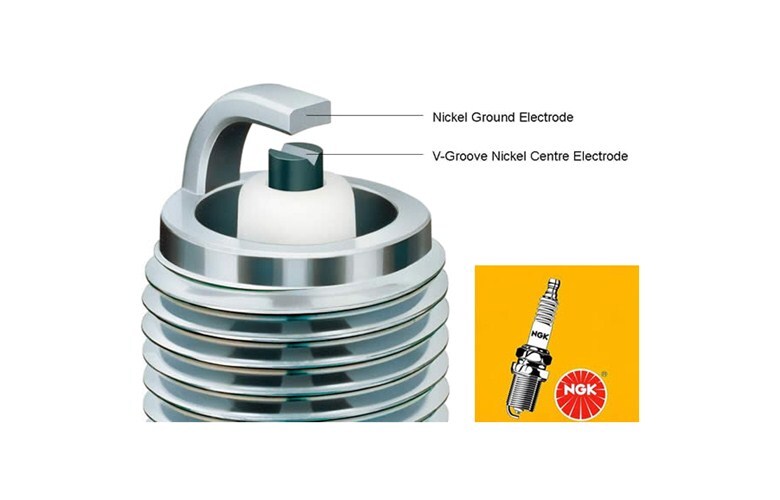

    NGK's V-Power Plugs feature a unique V-Cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

    This spark plug features trivalent metal plating for superior anti-corrosion and anti-seizing properties, as well as corrugated ribs to prevent flashover.

    It also includes a pure alumina silicate ceramic insulator to provide superior strength and better heat transfer. Additionally, a copper core aids in heat removal and a triple seal prevents leakage.

    Product Features:

    • Trivalent metal plating
    • Corrugated ribs
    • Pure alumina silicate ceramic insulator
    • Copper core
    • Triple seals
    Shell Specifications Center Electrode Ground Electrode
    Thread Size: 14mm Heat Range: 8 Type: V-Cut Type: Standard
    Hex Size: 13/16" (21mm) Brand: NGK Material: Nickel Material: Nickel
    Reach: 12.7mm (1/2") Longevity: 30k Size: 2.5mm Quantity: 1
    Seat Type: Gasket Features: Strengthened Ground Electrode Projection: Projected
    Gap: .040" (1.0mm) Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminium: 18-21.6 lb. ft.
    Terminal Type: Solid
    Resistor: No
    Overall Height: JIS
    Thread Pitch: 1.25mm
    $5.65 EA (ex. GST)
