( BP8HS-10 ) NGK Spark Plug

  • ( BP8HS-10 ) NGK Spark Plug NGK-BP8HS-10 BP8HS-10

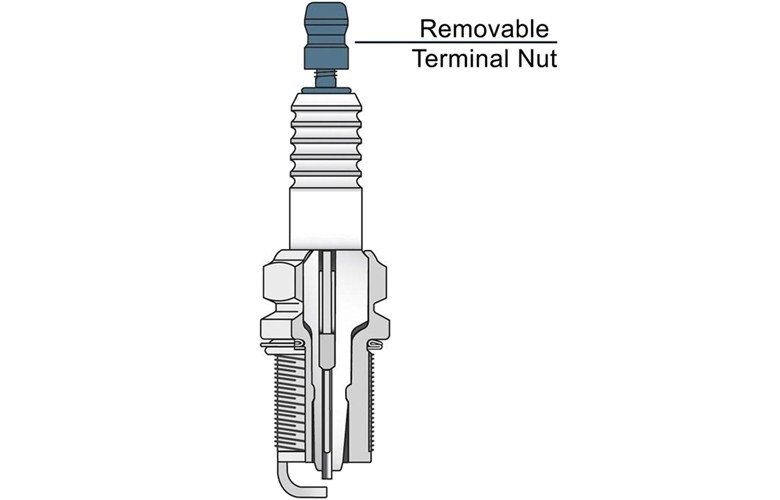

    NGK's Standard Plugs are constructed for longer life and optimum performance. This plug has a screw-on terminal nut over a threaded terminal stud to allow it to be used with either connector type.

    This plug conforms to the Japanese Industrial Standards height of 53mm from the seat to the top of the terminal nut.

    This spark plug features trivalent metal plating for superior anti-corrosion and anti-seizing properties, as well as corrugated ribs to prevent flashover.

    It also includes a pure alumina silicate ceramic insulator to provide superior strength and better heat transfer. Additionally, a copper core aids in heat removal and a triple seal prevents leakage.

    Product Features:

    • Trivalent metal plating
    • Corrugated ribs
    • Pure alumina silicate ceramic insulator
    • Copper core
    • Triple seals
    Shell Specifications Center Electrode Ground Electrode
    Thread Size: 14mm Heat Range: 8 Type: Standard Type: Standard
    Hex Size: 13/16" (21mm) Brand: NGK Material: Nickel Material: Nickel
    Reach: 12.7mm (1/2") Longevity: 30k Size: 2.5mm Quantity: 1
    Seat Type: Gasket Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminium: 18-21.6 lb. ft. Projection: Projected
    Gap: .040" (1.0mm)
    Terminal Type: Removable Nut
    Resistor: No
    Overall Height: JIS
    Thread Pitch: 1.25mm
    Resistor Value: 5K Ohm
    $5.65 EA (ex. GST)
