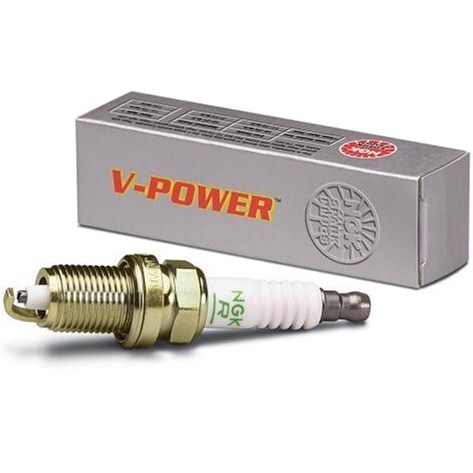

( BPZ8H-N-10 ) NGK Spark Plug

  • ( BPZ8H-N-10 ) NGK Spark Plug NGK-BPZ8H-N-10 BPZ8H-N-10

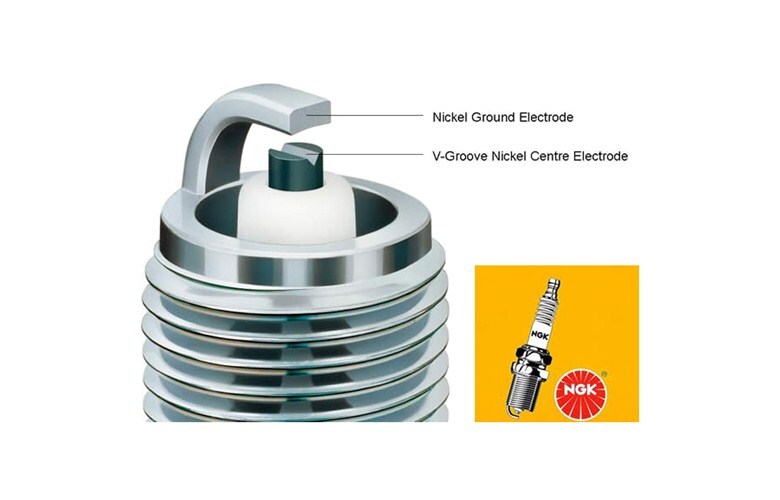

    NGK's V-Power Plugs feature a unique V-Cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

    Along with a strengthened ground electrode, this plug has an inductive resistor design for use with capacitive discharge ignition systems that have a much lower voltage output.

    This is achieved by utilising a coiled nickel wire inserted into the stem and held in place by a spring. The coil acts as an electromagnet, inducing a magnetic field around the center stem, creating a natural "field" resistor.

    This spark plug features trivalent metal plating for superior anti-corrosion and anti-seizing properties, as well as corrugated ribs to prevent flashover.

    It also includes a pure alumina silicate ceramic insulator to provide superior strength and better heat transfer. Additionally, a copper core aids in heat removal and a triple seal prevents leakage.

    Product Features:

    • Trivalent metal plating
    • Corrugated ribs
    • Pure alumina silicate ceramic insulator
    • Copper core
    • Triple seals
    Shell Specifications Center Electrode Ground Electrode
    Thread Size: 14mm Heat Range: 8 Type: V-Cut Type: Standard
    Hex Size: 13/16" (21mm) Brand: NGK Material: Nickel Material: Nickel
    Reach: 12.7mm (1/2") Longevity: 30k Size: 2.5mm Quantity: 1
    Seat Type: Gasket Features: Strengthened Ground Electrode Projection: Projected
    Gap: .040" (1.0mm) Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminium: 18-21.6 lb. ft.
    Terminal Type: Solid
    Resistor: Yes
    Overall Height: ISO
    Thread Pitch: 1.25mm
    Resistor Value: Inductive
    $21.20 EA (ex. GST)
