Please note: a minimum of 10 must be purchased in any one order.

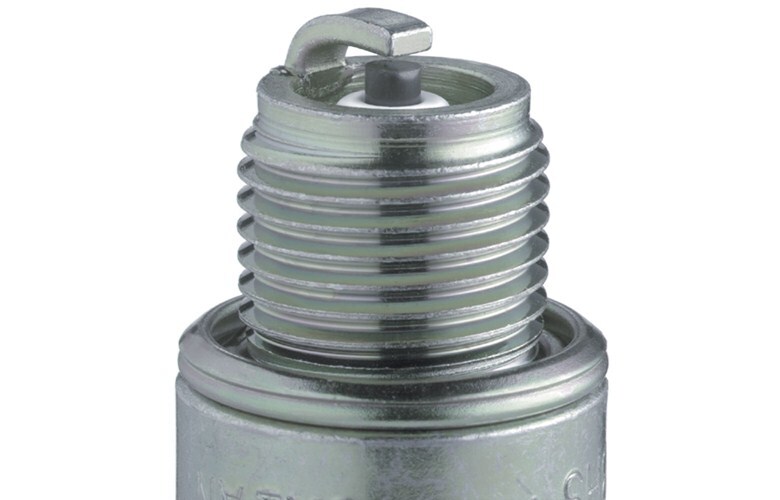

NGK's Standard Plugs are constructed for longer life and optimum performance. This plug has an inductive resistor design for use with capacitive discharge ignition systems that have a much lower voltage output.
This spark plug features trivalent metal plating for superior anti-corrosion and anti-seizing properties, as well as corrugated ribs to prevent flashover.
It also includes a pure alumina silicate ceramic insulator to provide superior strength and better heat transfer. Additionally, a copper core aids in heat removal and a triple seal prevents leakage.
- Trivalent metal plating
- Corrugated ribs
- Pure alumina silicate ceramic insulator
- Copper core
- Triple seals
|Shell||Specifications||Center Electrode||Ground Electrode|
|Thread Size: 14mm||Heat Range: 8||Type: Standard||Type: Standard|
|Hex Size: 13/16" (21mm)||Brand: NGK||Material: Nickel||Material: Nickel|
|Reach: 12.7mm (1/2")||Longevity: 30k||Size: 2.5mm||Quantity: 1|
|Seat Type: Gasket||Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminium: 18-21.6 lb. ft.||Projection: Projected|
|Gap: .040" (1.0mm)|
|Terminal Type: Solid|
|Overall Height: ISO|
|Thread Pitch: 1.25mm|
|Resistor Value: Inductive|
