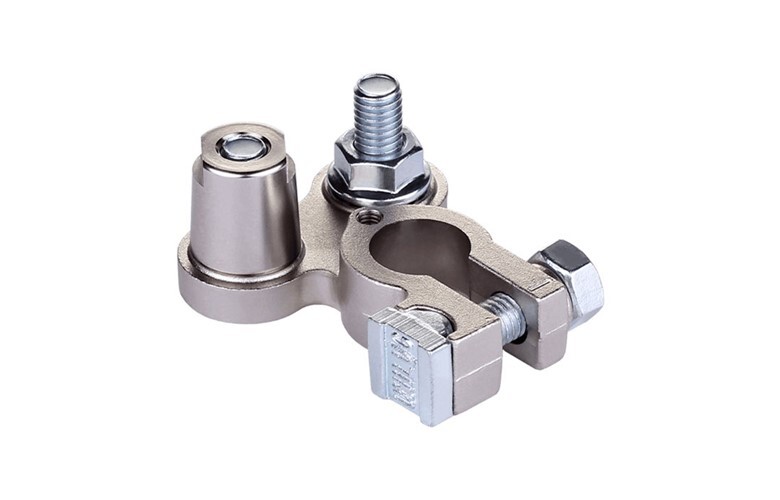

These battery terminal lugs are purpose designed for dual battery installations where it is not desirable to cut or modify the factory battery leads or terminals.
The concept allows factory strap type battery terminals to be fitted to a special tapered adaptor at the same time providing an additional terminating post to connect auxiliary batteries and/or ancillary equipment.
- Forged from high grade brass for ultimate strength and greater conductivity
- Mating surfaces are machined then satin nickel plated for superior performance
- Moulded Nylon lug cover protects against accidental short circuit
- Design allows wiring to rotate through an arc of 180° at either terminating post
|Material - Lug Assembly||Forged JIS 3771 brass satin nickel plating|
|Material - Adaptor Post||Machined JIS C3604 brass satin nickel plated|
|Material - Protective Cover||Impact/Temperature resistant PA-6 (Nylon)|
|Hardware||Cover screw SUS304, all other zinc plated steel|
|Dimensions||35mm H x 103mm W x 200mm L|
|Weight||200 g (with packaging)|
