Please note: a minimum of 10 must be purchased in any one order.

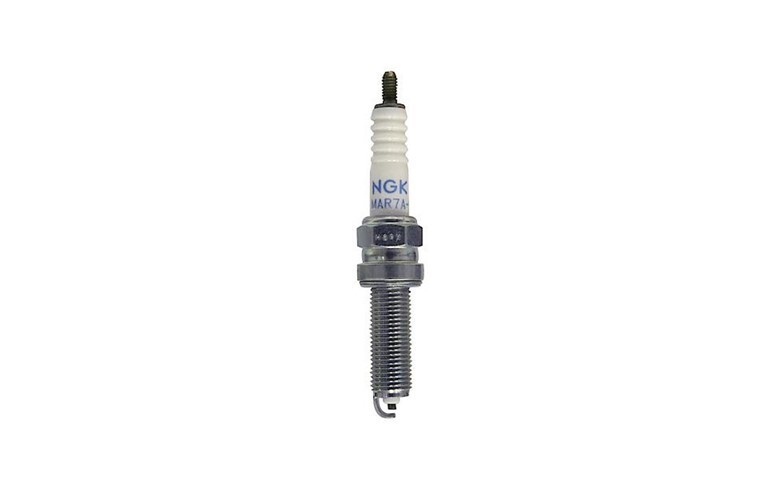

NGK's standard plugs are constructed for longer life and optimum performance.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
|Shell||Specifications||Centre Electrode||Ground Electrode|
|Thread size: 10mm||Heat range: 6||Material: Nickel||Material: Nickel|
|Thread pitch: 1.0mm||Longevity: 30k||Type: Standard||Type: Standard|
|Seat type: Gasket||Size: 2.5mm||Quantity: 1|
|Resistor: Yes|| |
|Resistor value: 5K Ohm|| |
Cast iron: 7.2-10.8 lb. ft.
|Reach: 26.5mm (1.04")||Aluminium: 7.2-8.7 lb. ft.|
|Hex size: 14mm (9/16")|
|Terminal type: Threaded stud|
|Overall height: ISO|
|Gap: 0.9mm (0.035")|
