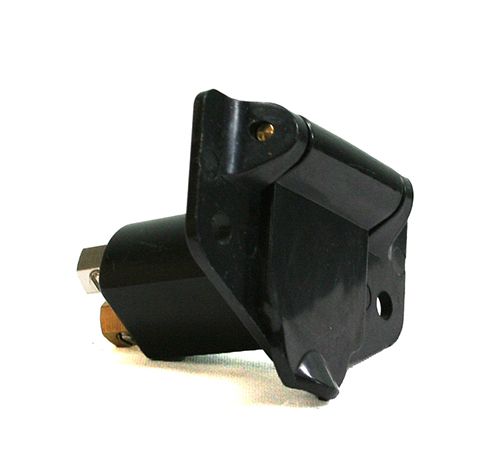

Replacement plastic power socket with 2 pin connection. Will fit 712, 912, 915, RC30 & RC23 Powerwinch models. Kit comes with fixings.
Mfr # P7810300AJ

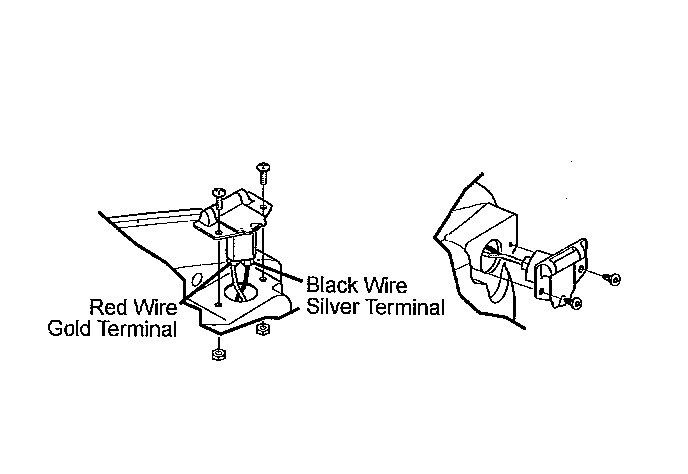

- Disconnect the power harness.
- Remove the attaching screws and pull the receptacle and wires from the case.
Note: It may be necessary to remove the cover from the unit to access the attaching nuts holding the receptacle.
- Disconnect the wires from the receptacle
Make note of the colour code and terminals
- Attach the wires to the new receptacle. Black goes to the silver terminal, Red goes to the gold terminal.
- Push the wires and receptacle into the case and secure.
- Reattach the cover.
