Designed and manufactured in Italy, the Dylan series winches are composed of AISI 316-grade stainless steel with a watertight motor, anodized aluminium gearbox, and an easy-open inspection lid, making it a state-of-the-art vertical anchor winch.
Recommended Boat Size: 14 - 18 metres (46-59ft)

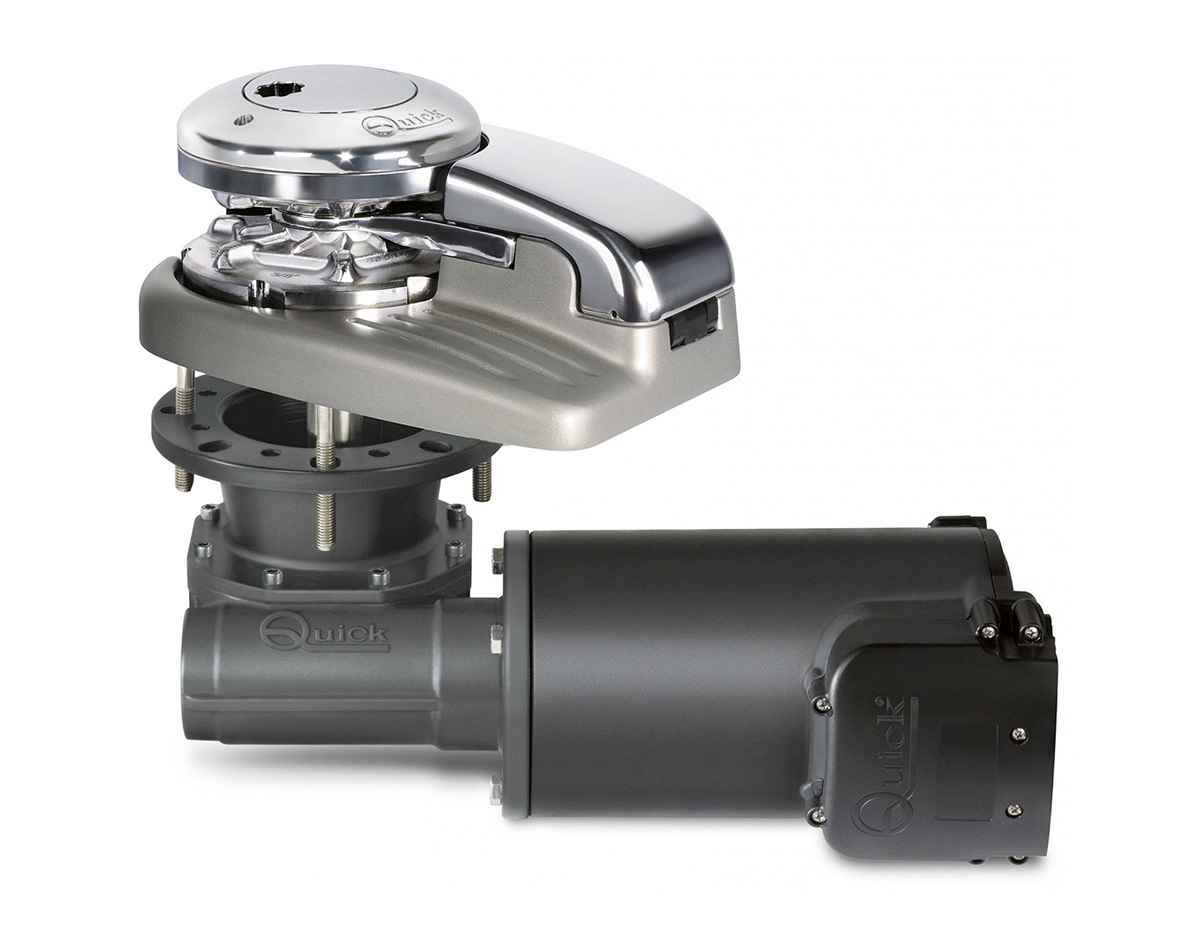

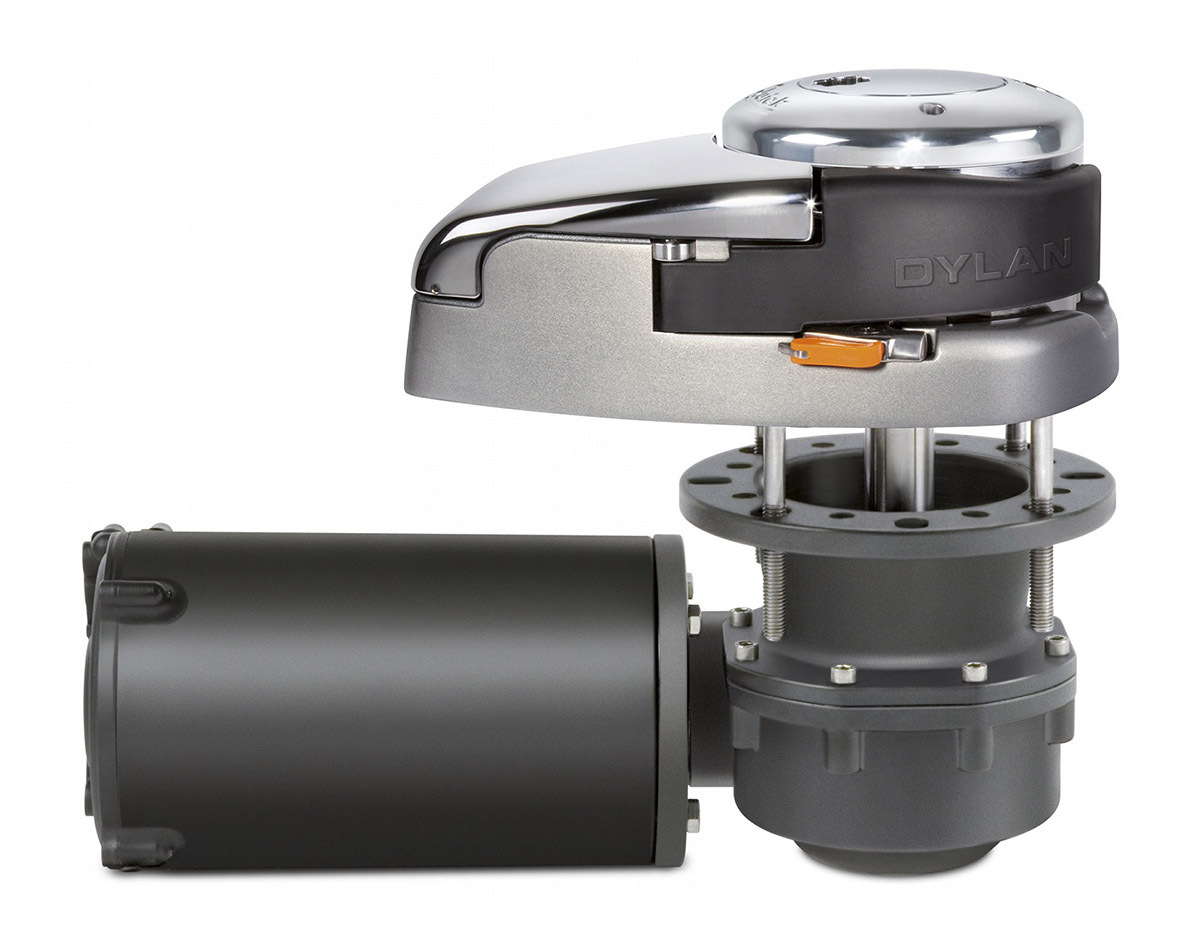

Designed & manufactured in Italy, the Quick Dylan DH4 windlass is a state-of-the-art vertical anchor winch suitable for boats from 14-20m (46-66ft). As a vertical windlass, its motor & gearbox must be installed inside the vessel's anchor well/storage locker. It occupies less space on the deck as a result, however your vessel's anchor well must have enough space to allow this.
Quick windlasses are equipped (as standard) with exclusive solutions and devices to ensure safety and functionality in all conditions. Each component has been designed in the company’s Italian engineering laboratories.

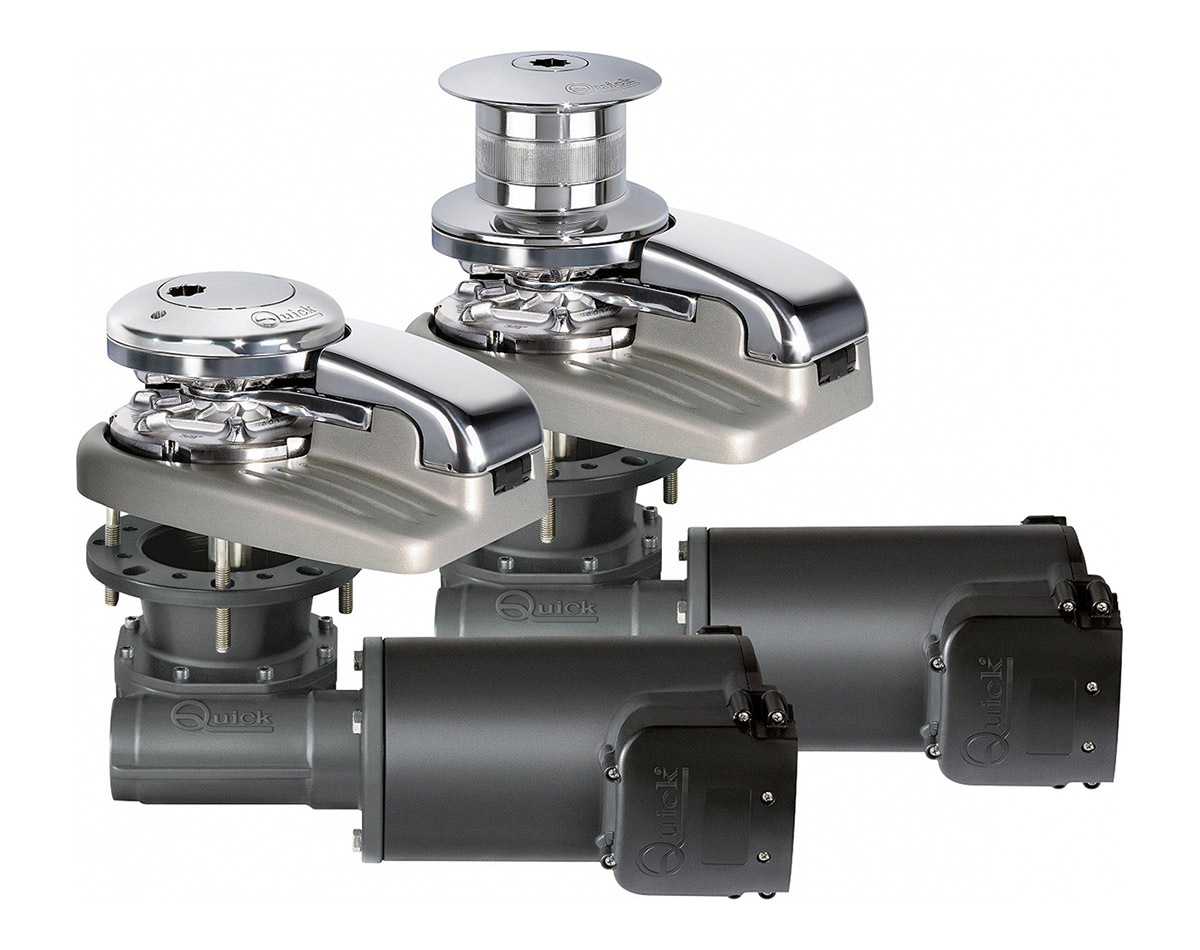

The Dylan is available in the following options:
Features:
Included in the package:
Accessories (not included) - must be purchased separately:

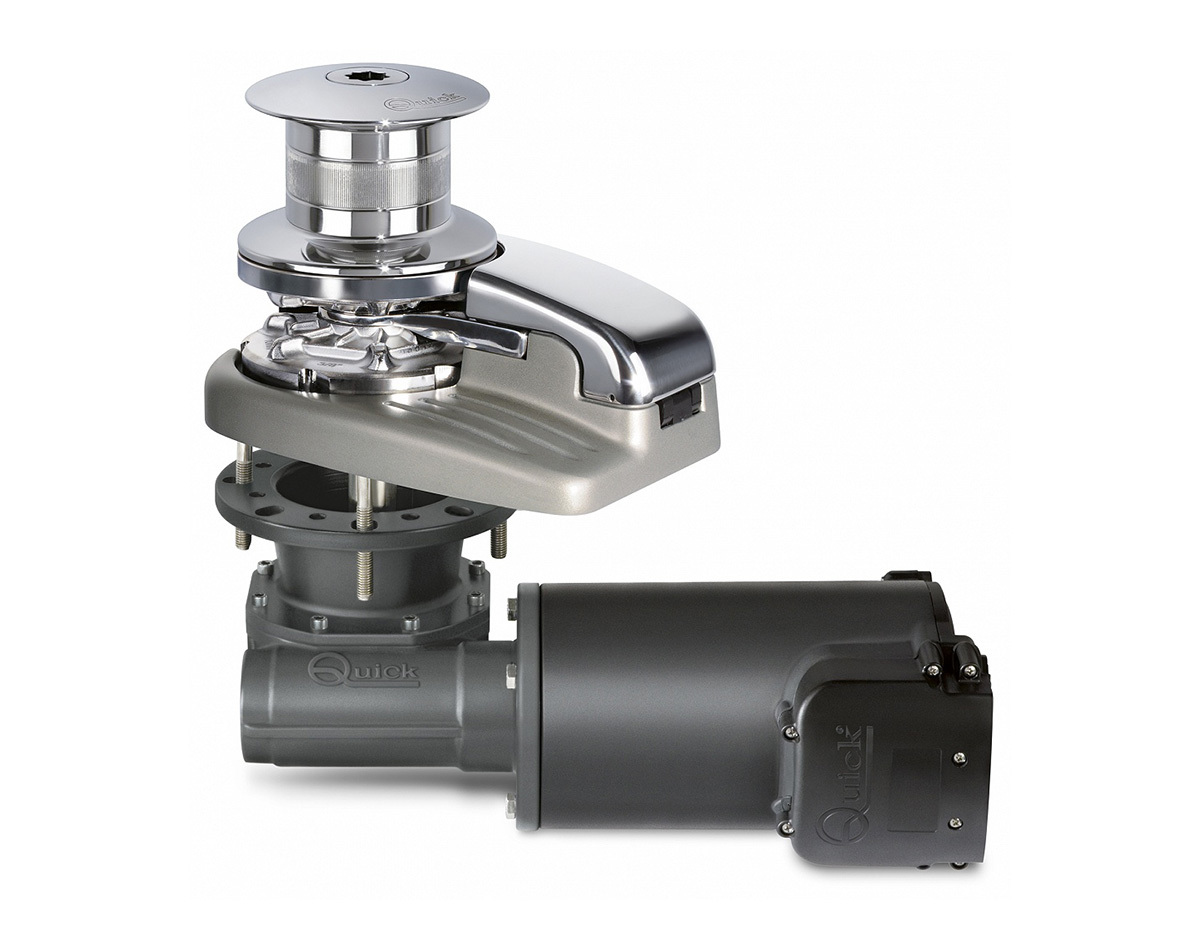

The drum is a capstan which is fitted above the gypsy. Some sailors use it for tasks like hauling rope for sails, dinghies, or craypots. A Dylan DH4 winch does not need a drum to haul the anchor up or down because the gypsy does that. Therefore, unless you have a specific use for a drum (like the previous examples), you probably do not need one.
How do I calculate what motor power I need?
Please see the DC Electric Motor Power image in the product images section for the factors to consider when selecting which motor power would best suit your vessel, anchor and anchor rode combination.
Do I need a 10mm or 12mm Gypsy?
This depends on whether your chain size is 10mm or 12/13mm.
Each gypsy option supplied with the DH4 can support anchor rode with both calibrated short link chain and spliced 3-strand rope. This is due to the special notching fitted internally, which allows the rope to slide easily.
Manual Free-Fall Device
This allows the manual release of the gypsy clutch, resulting in the chain falling faster.
Protection from Water
Metals used in the Base

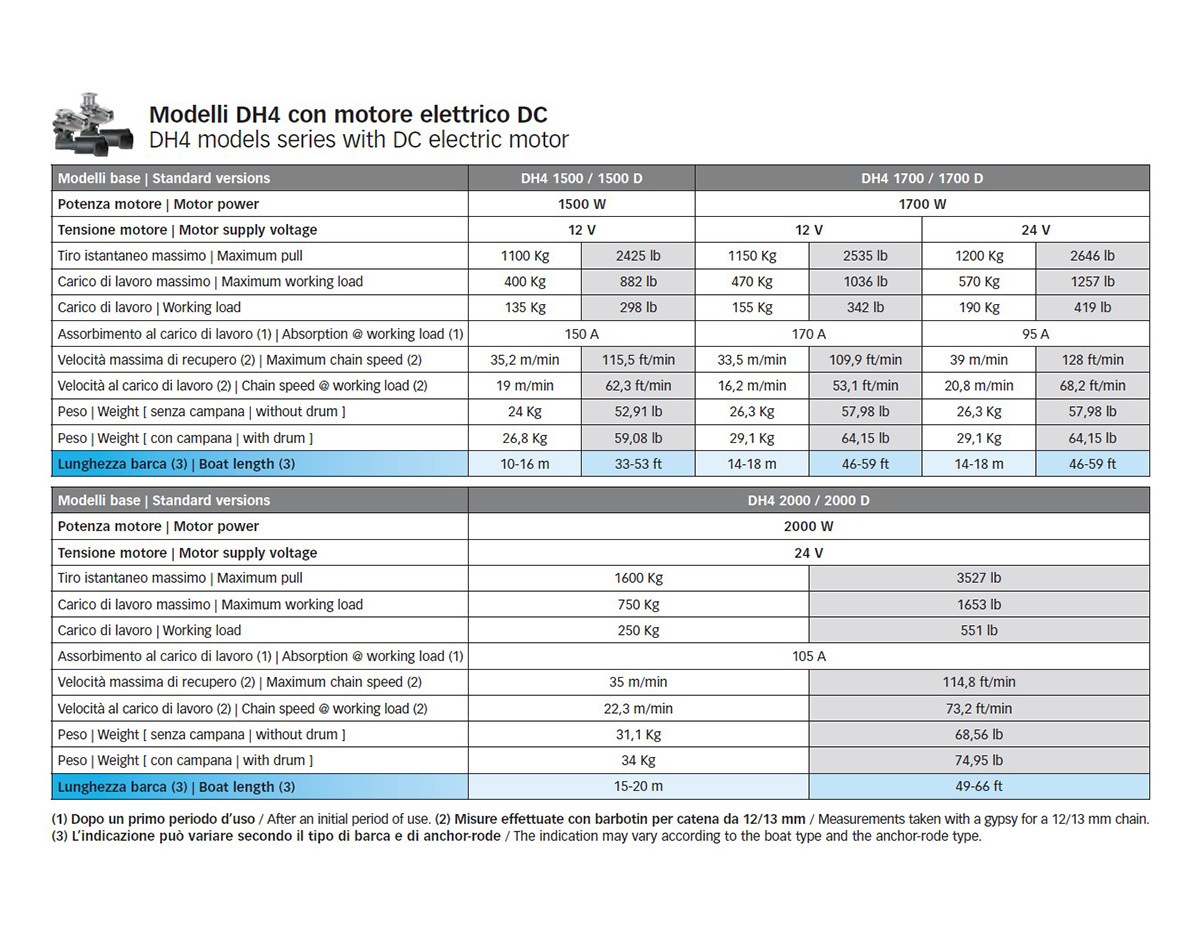

Model | DN4 1700 | DN4 2000 |
---|---|---|
Watts | 1700w | 2000w |
Volts Std. | 12 (24) | 24 |
Amps | 170A | 105A |
Chain Std. (mm) | 10 (13) | 10 (13) |
Rope Size | 16-18mm | 16-18mm |
Max. Pull | 1150kg | 1600kg |
Max. Working Load | 470kg | 750kg |
Max. Chain Speed | 33.5m/min | 35m/min |
Drive Shaft | Vertical | Vertical |
Capstan Option | Yes | Yes |
Chain/Rope Gypsy | Yes | Yes |
Deck Thickness | 30-70mm | 30-70mm |
