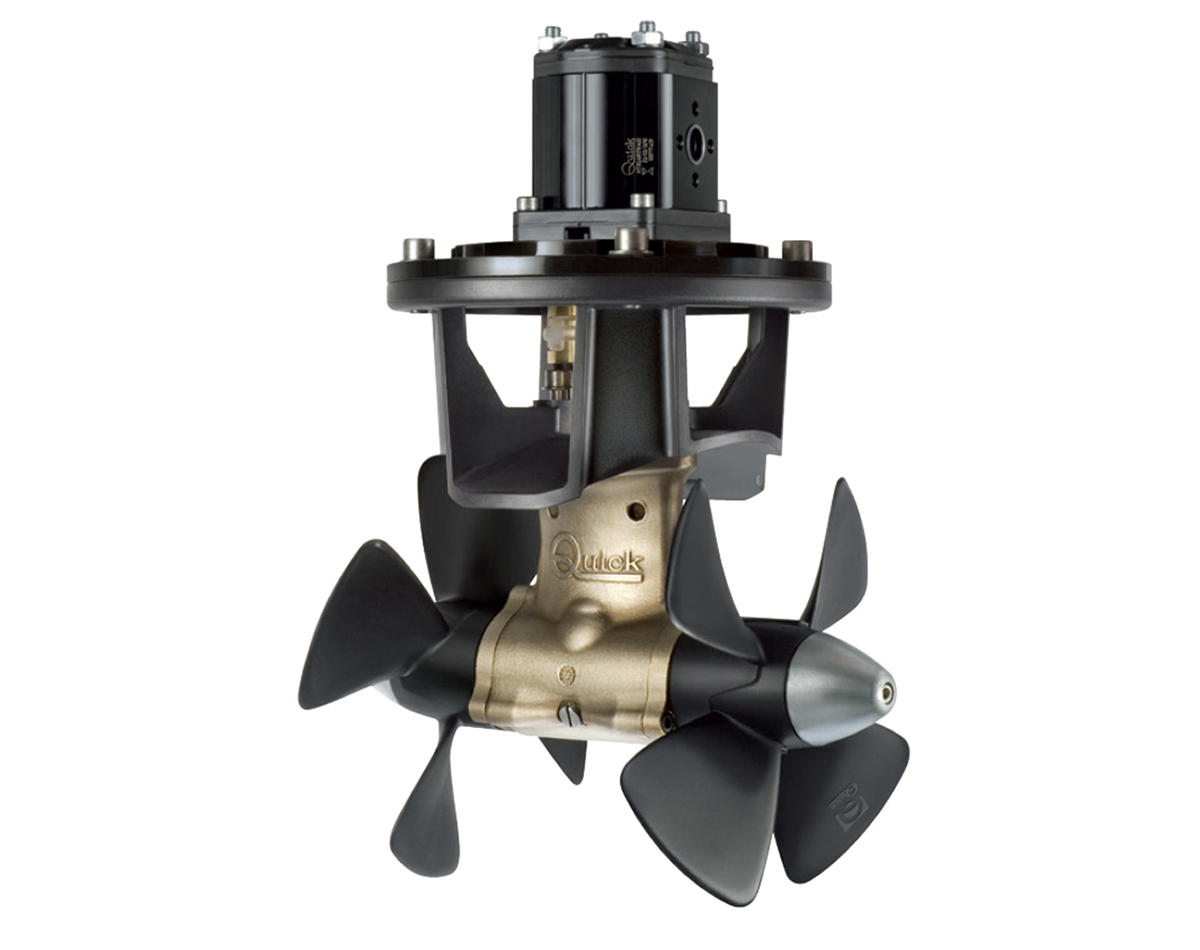

Quick Hydraulic Bow Thruster BTQH250 Twin Prop 220KGF 10kw

  • Quick Hydraulic Bow Thruster BTQH250 Twin Prop 220KGF 10kw QFGBT250HY220A00 FGBT250HY220A00

    Quick hydraulic bow thrusters feature reversible hydraulic motors, made in Italy from the finest materials.

    High quality production, assembly and testing standards - as well as special, specific marine environment treatments - make Quick hydraulic thrusters a safe and reliable component.

    • Double propellor made from sturdy composite materials
    • Bronze gearbox
    • Zinc anode independent from the gearbox is easily replaceable
    • Equipped with elastic coupling
    Propulsion System Double propellor contra-rotating
    Tunnel Diameter 250mm
    Motor Type Reversible gear-type
    Displacement 9.6cc
    Boat Size 16m - 20m
    Weight 16.1kg
    Flow Rate 25.5 L/min
    Pressure 3,480 psi
    Power 12.3 hp / 9.2 Kw
    Thrust 150 Kgf

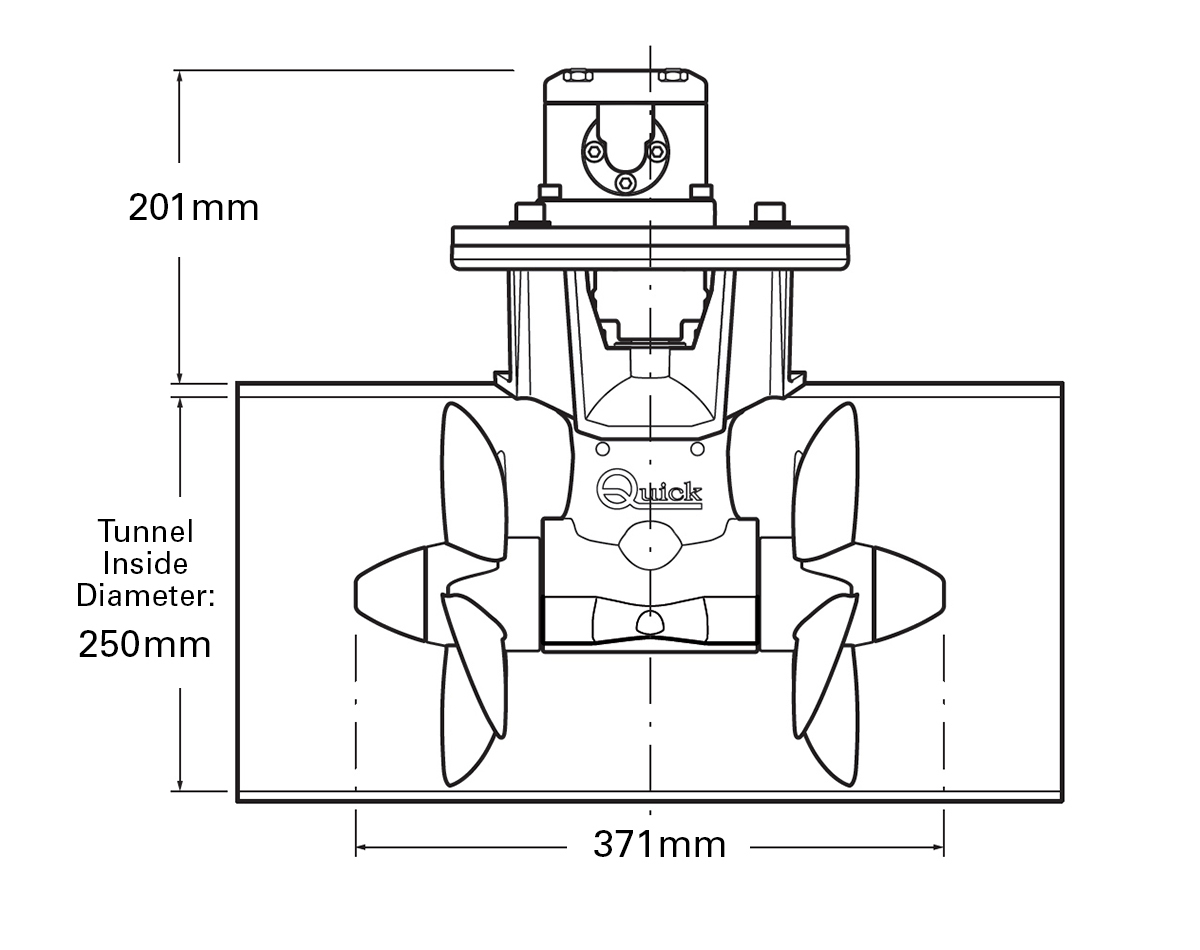

    Dimensions

    A = 201mm

    B = 250mm

    C = 373mm

    • Oversize Product
    $7,425.00 EA (ex. GST)
