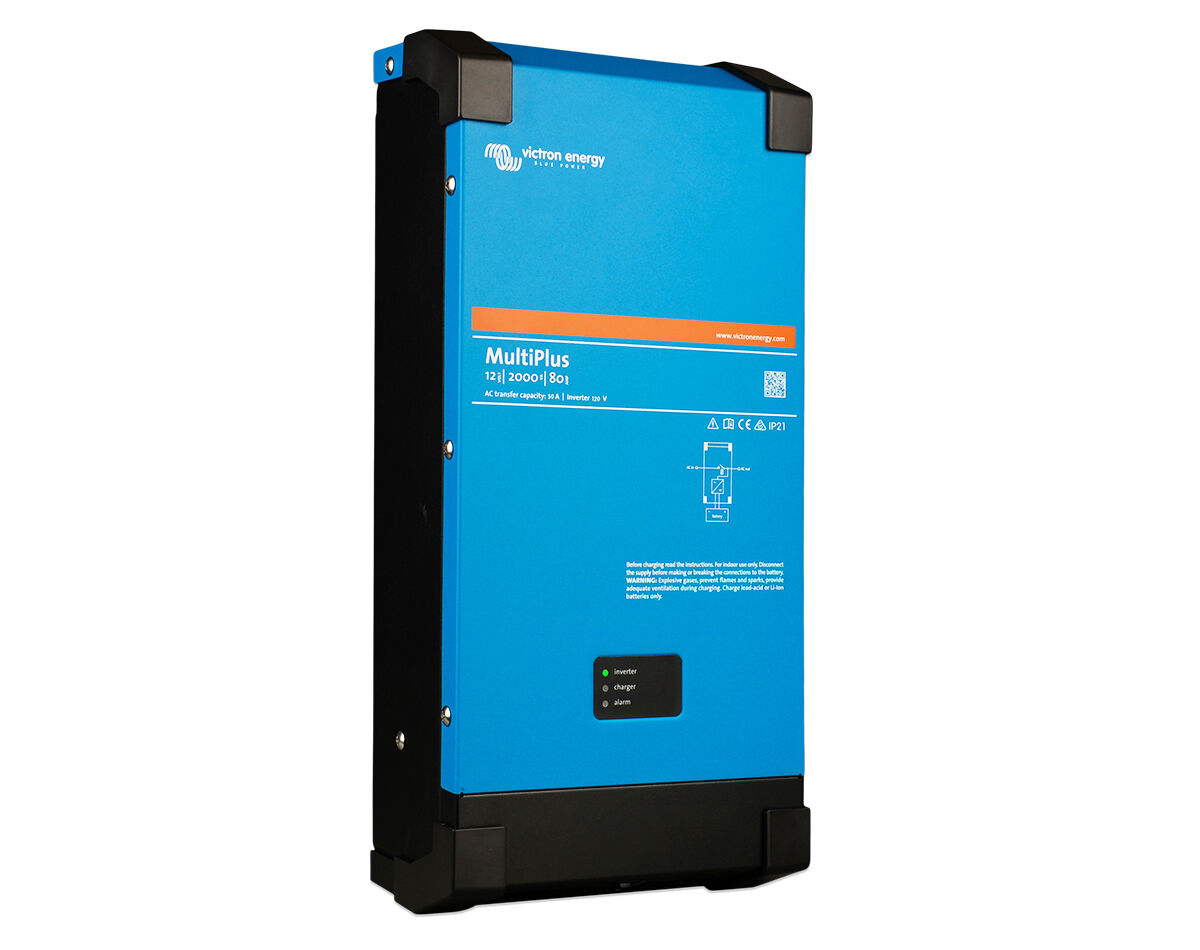

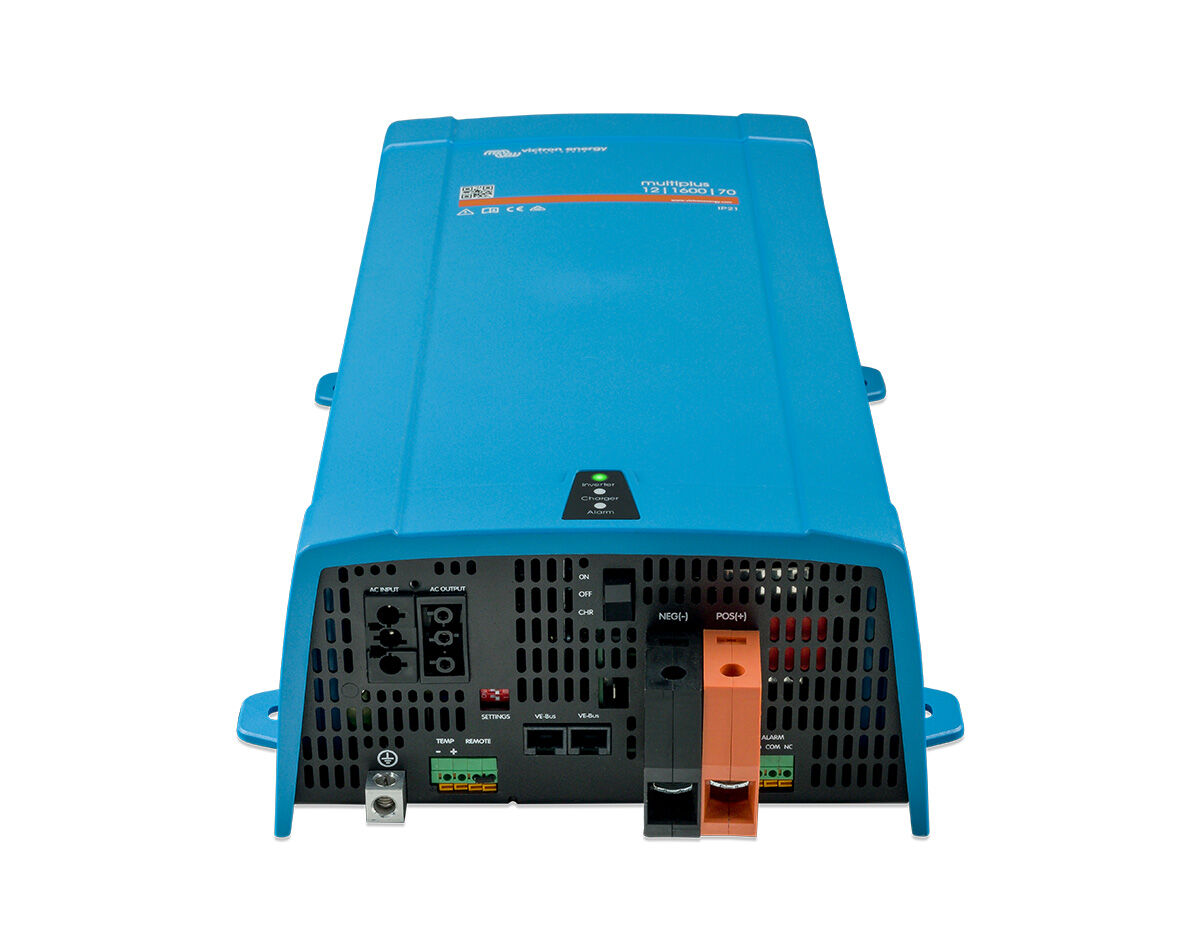

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
| JPW SKU | Model | Voltage | Transfer Switch | Dimensions L x W x H (mm) |
|---|---|---|---|---|
| JPW200416 | 12/500/20 | 12V | 16A | 311 x 182 x 100 |
| JPW200417 | 12/800/35 | 12V | 16A | 360 x 240 x 100 |
| JPW200418 | 12/1200/50 | 12V | 16A | 406 x 250 x 100 |
| JPW200419 | 12/1600/70 | 12V | 16A | 470 x 265 x 120 |
| JPW200420 | 12/2000/80 | 12V | 32A | 506 x 236 x 147 |
| JPW200435 | 24/500/10 | 24V | 16A | 311 x 182 x 100 |
| JPW200436 | 24/800/16 | 24V | 16A | 360 x 240 x 100 |
| JPW200437 | 24/1200/25 | 24V | 16A | 406 x 250 x 100 |
| JPW200438 | 24/1600/40 | 24V | 16A | 470 x 265 x 120 |
| JPW200439 | 24/2000/50 | 24V | 32A | 506 x 236 x 147 |
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.
Parallel operation and three phase capability
Up to six Multis can operate in parallel to achieve higher power output. In addition to parallel connection, three units can be configured for three-phase output.
PowerControl - Dealing with limited generator, shore side or grid power
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Four stage adaptive charger and dual bank battery charging for Lithium, Sealed, AGM, Gel and Flooded Batteries
The main output provides a powerful charge to the battery system by means of advanced 'adaptive charge' software. The software fine-tunes the three-stage automatic process to suit the condition of the battery, and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and on our website, under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.
High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode
When Search Mode is 'on', the power consumption of the inverter in no-load operation is decreased by approx. 70 %. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on/ off/ charger on
Three pole connector.
On-site system configuring, monitoring and control
After installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches.
500/800/1200 VA models: remote switch/ battery charge voltage/ inverter frequency/ search mode.
1600/2000 VA models: battery charge voltage/ search mode.
For more settings use VE-Config or the VE.Bus Smart dongle.
From $632.73 (inc. GST)
