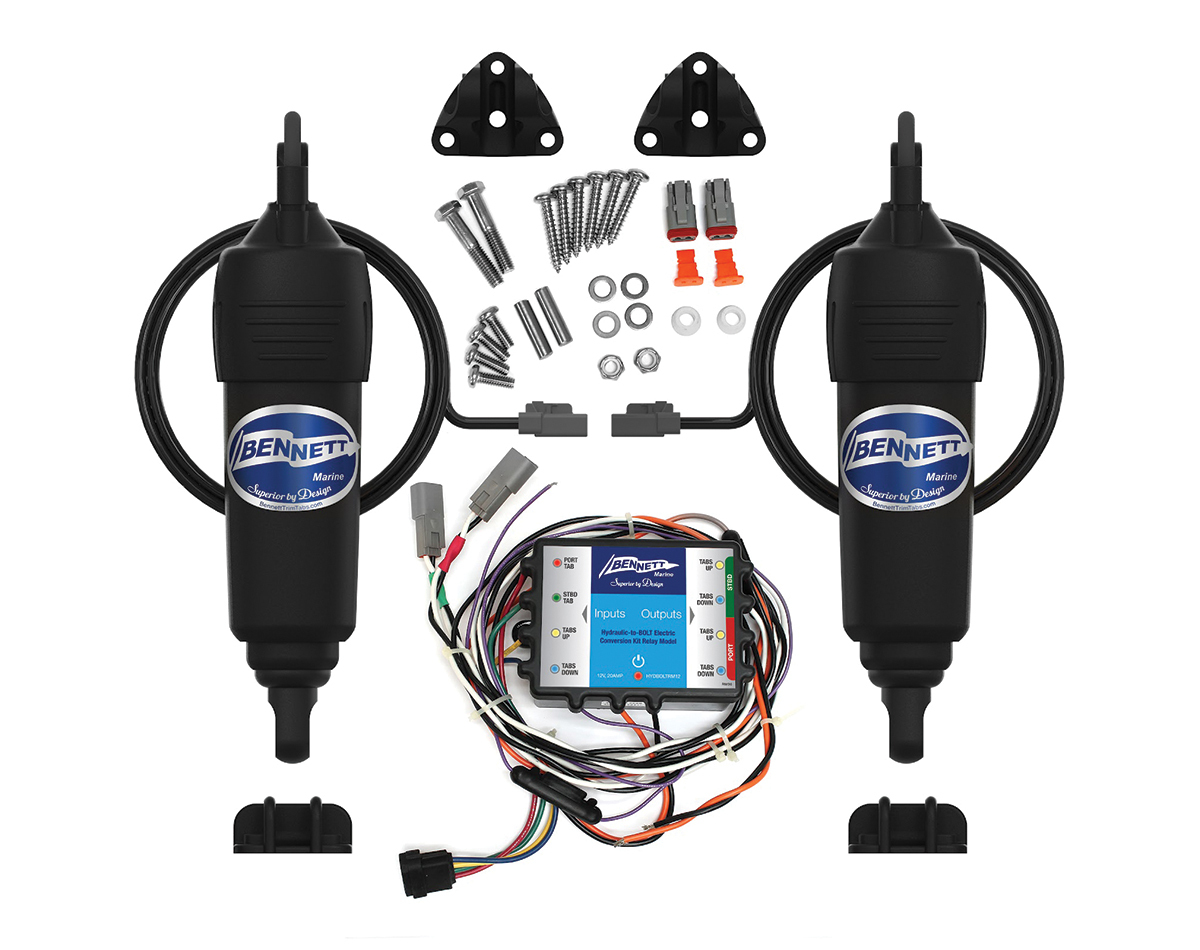

Bennett Marine Hydraulic to BOLT Electric Trim Tab Conversion Kit

  • Bennett Marine Hydraulic to BOLT Electric Trim Tab Conversion Kit JPW16328 HYDBOLTCON

    All you need for a quick and easy conversion from Bennett Marine hydraulic actuators to the BOLT Electric actuators. No rewiring or drilling of new holes required.

    BOLT actuators are exceptionally durable and dependable, backed by a lifetime limited warranty.

    Features "plug 'n' play" connection to existing standard Bennett Rocker Switch, as well as the Auto Tab Retraction and Diagnostics Relay Module.

    • Quick and easy conversion from standard Bennett hydraulic single actuator systems (A1101A & A1101ARC) using your existing wiring, rocker switch and trim planes
    • No rewiring or drilling of new holes required
    • "Plug 'n' play" connection to your existing standard Bennett Rocker Switch
    • Equipped with Auto Tab Retraction and Diagnostics Relay Module
    • Lifetime Limited Warranty

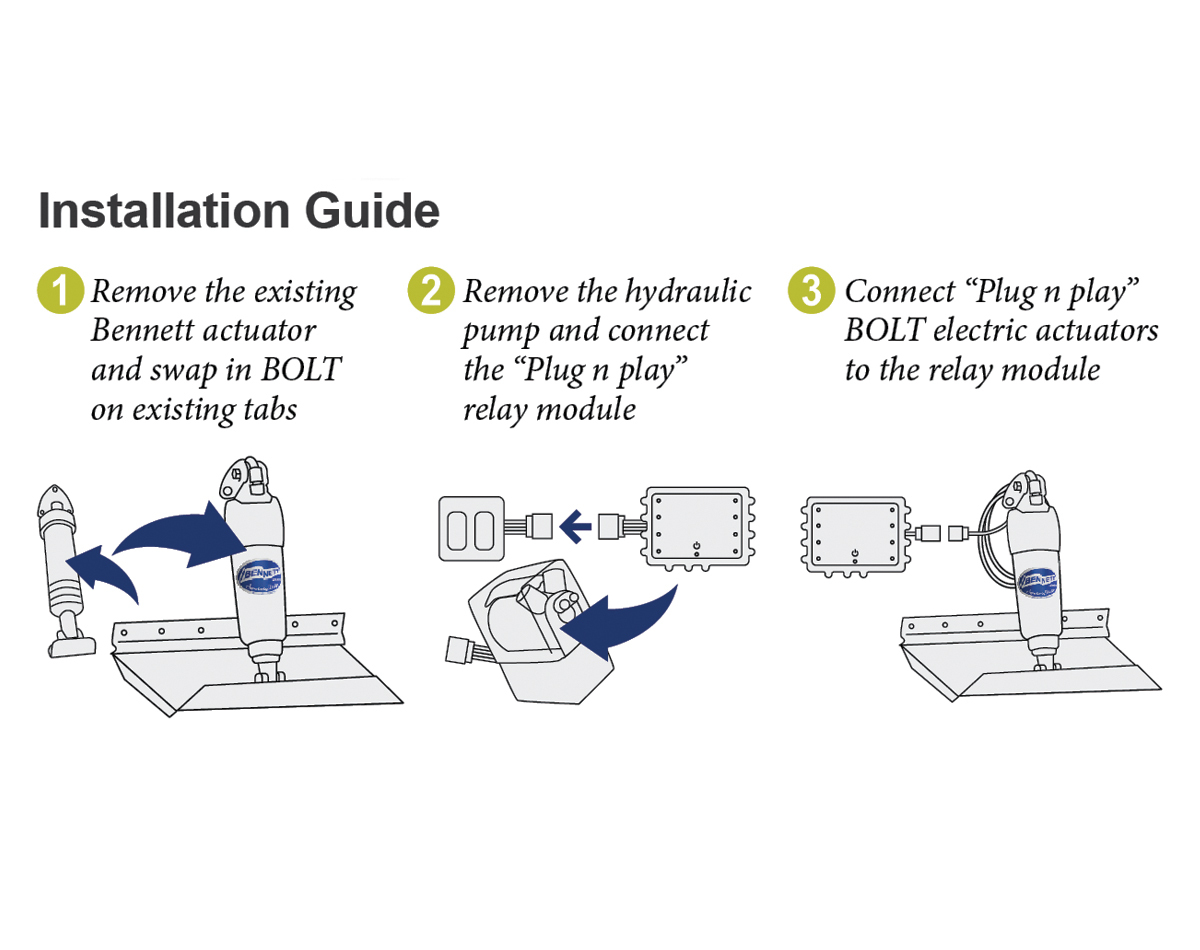

    Installation:

    1. Remove the existing Bennett actuator and swap in BOLT on existing tabs.
    2. Remove the hydraulic pump and connect the "plug 'n' play" relay module.
    3. Connect "plug 'n' play" BOLT electric actuators to the relay module.

    For further details, see the Instruction and Installation Manual.

    $705.19 EA (ex. GST)
