Bennett Marine AutoTrim Pro Hydraulic Trim Tab System

  • Bennett Marine AutoTrim Pro Hydraulic Trim Tab System

    Hydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions.

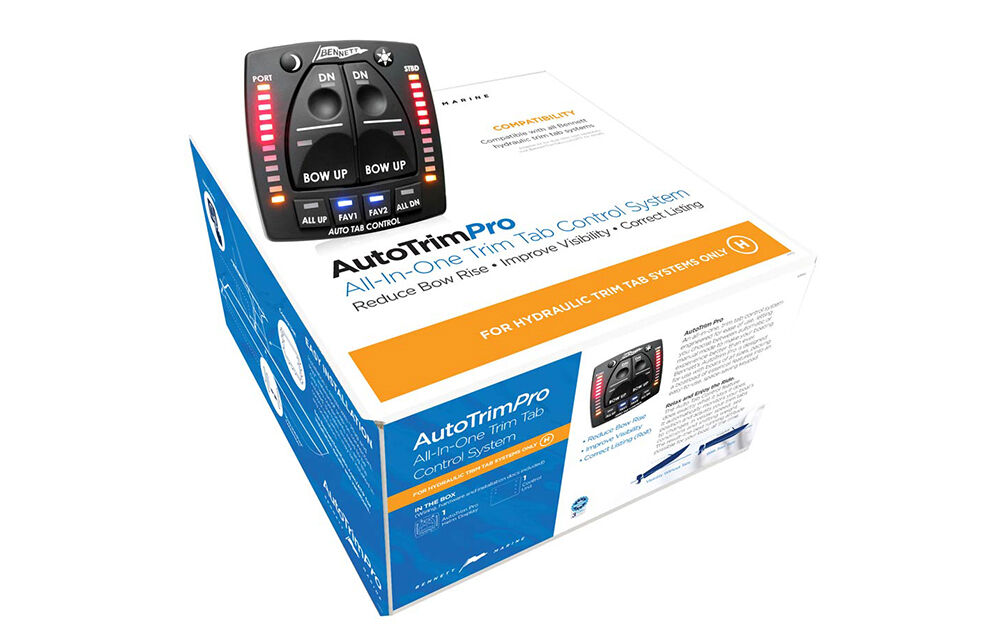

    The AutoTrim Pro is an all-in-one trim tab control system designed for boats of all sizes – packing in a boatload of essential features into an easy-to-use, space-saving keypad.

    This system automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. Enjoy the convenience of riding in auto mode, or shift to full manual mode anytime.

    • Auto Trim Tab Control automatically reduces bow rise and corrects listing
    • Manual Tab Control puts you back in manual control at the touch of a button
    • Trim Tab Position Indication alerts you to the position and activity of the trim tabs
    • “All Up” and “All Down” Buttons allow for one-touch manual adjustments
    • Automatic Tab Retraction protects tabs during storage and trailering
    • OEM Customizable Response Time enables boat builders to pre-configure reaction time

    Kits include:

    • 2 x trim plane assemblies
    • 2 x hydraulic actuators
    • 1 x hydraulic power unit

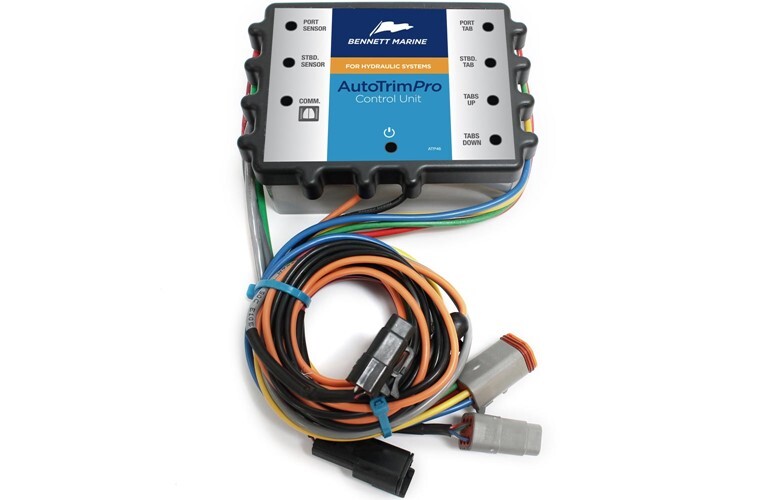

    • 1 x AutoTrim Pro Control Unit

    Downloads:

    MPN Span/Chord mm (inch) Trim Plane Type Actuators Per Tab Boat Size* (m)
    M80ATP 203 x 254 (8 x 10) Sport 1 5 - 6
    M120ATP 254 x 305 (10 x 12) Sport 1 6 - 7
    129ATP 305 x 228 (12 x 9) Trailing Edge 1 4 - 6
    189ATP 457 x 228 (18 x 9) Trailing Edge 1 6 - 7
    249ATP 610 x 228 (24 x 9) Trailing Edge 1 6 - 8
    1212ATP 305 x 305 (12 x 12) Riveted Edge 1 5 - 7
    1812ATP 457 x 305 (18 x 12) Riveted Edge 1 6 - 8
    2812ATP 610 x 305 (24 x 12) Riveted Edge 1 7 - 9

    *Boat size is recommended only.

    Bennett Marine AutoTrim Pro M80 Sport Hydraulic Trim Tab Kit with Batwing Plate 8 x 10 Inch
    JPW16047
    M80ATP
    $2,439.90 KIT (ex. GST)
    Bennett Marine AutoTrim Pro M120 Sport Hydraulic Trim Tab Kit with Batwing Plate 10 x 12 Inch
    JPW16048
    M120ATP
    $2,537.98 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Trailing Edge Plate 12 x 9 Inch
    JPW16049
    129ATP
    $2,156.00 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Trailing Edge Plate 18 x 9 Inch
    JPW16050
    189ATP
    $2,268.75 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Trailing Edge Plate 24 x 9 Inch
    JPW16051
    249ATP
    $2,323.75 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Riveted Angle Plate 12 x 12 Inch
    JPW16052
    1212ATP
    $2,392.50 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Riveted Angle Plate 18 x 12 Inch
    JPW16053
    1812ATP
    $2,203.39 KIT (ex. GST)
    Bennett Marine AutoTrim Pro Hydraulic Trim Tab Kit with Riveted Angle Plate 24 x 12 Inch
    JPW16054
    2412ATP
    $2,743.13 KIT (ex. GST)
